DC온도조절기(DC Temperature Controller)

Mini온도조절기(WTS-60SC Series)

SORT MODEL NAME
■ INPUT SPECIFICATION WTS-50S WTS-60S WTS-60S12
Input voltage Range(AC) 110V/220V 110V/220V 110V/220V
Input Frequency Range 50/60Hz 50/60Hz 50/61Hz
No Load Power (Watte) ~0.5W ~0.5W ~0.5W
Efficiency(%) : 85~88%
■ OUTPUT SPECIFICATION
Output Voltage (V) 24V 24V 12V
Output Current (A) 2A 2.5A 5A
Output Power (Watte) 48W 60W 60W
Ripple & Noise < 5% < 5% < 5%
■ GENERAL SPECIFICATION
Dimension(mm) L160*W63*H30 L160*W63*H30 L160*W63*H30
Input Connector
■ SAFETY KC KC KC
■ OUTPUT JACK OPTION OPTION OPTION
■ APPLICATION 24VDC 발열체용/ 12hr타이머/1~5단계 온도조절/과열, 단락, 보호기능 장착/특허등록"다기능온도조절기" 24VDC 발열체용/ 12hr타이머/1~5단계 온도조절/과열, 단락, 보호기능 장착/특허등록"다기능온도조절기" 24VDC 발열체용/ 12hr타이머/1~5단계 온도조절/과열, 단락, 보호기능 장착/특허등록"다기능온도조절기"
■ MANUFACTURE WELLTRONICS / Made in KOREA

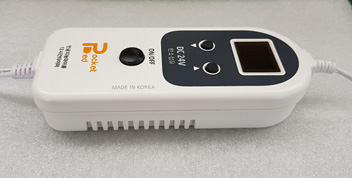

직관형 버튼 디자인

L160*63*30
L160*63*30

싱글용 온도조절기

SORT MODEL NAME
■ INPUT SPECIFICATION WTS-60S WTS-80S WTS-100S
Input voltage Range(AC) 110V/220V 110V/220V 110V/220V
Input Frequency Range 50/60Hz 50/60Hz 50/61Hz
No Load Power (Watte) ~0.5W ~0.5W ~1W
Efficiency(%) : 85~88%
■ OUTPUT SPECIFICATION
Output Voltage (V) 24V 24V 12V
Output Current (A) 2.5A 3.55A 5A
Output Power (Watte) 60W 80W 120W
Ripple & Noise < 5% < 5% < 5%
■ GENERAL SPECIFICATION
Dimension(mm) L200*W78*H80 L200*W78*H80 L200*W78*H80
Input Connector
■ SAFETY KC KC KC
■ OUTPUT JACK OPTION OPTION OPTION
■ APPLICATION / 기능 24VDC 발열체용/ 24hr타이머/1~5단계 온도조절/과열, 단락, 보호기능 장착/특허등록"다기능온도조절기" 24VDC 발열체용/ 24hr타이머/1~5단계 온도조절/과열, 단락, 보호기능 장착/특허등록"다기능온도조절기" 24VDC 발열체용/ 24hr타이머/1~5단계 온도조절/과열, 단락, 보호기능 장착/특허등록"다기능온도조절기"
■ APPLICATION 24VDC 전기요 24VDC 전기요 24VDC 전기요
■ MANUFACTURE WELLTRONICS / Made in KOREA

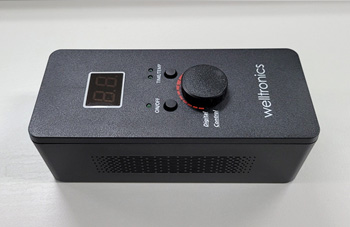

직관형 DIAL 디자인

L200*W78*H80

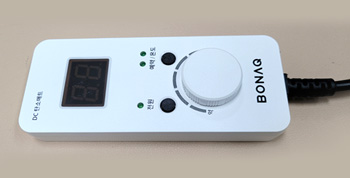

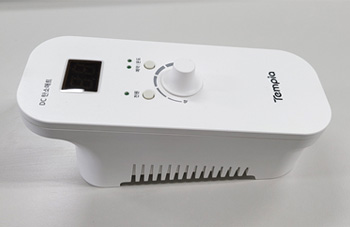

Smart Touch 디자인

L165*W73*H56

퀸(더블)용 온도조절기

SORT MODEL NAME
■ INPUT SPECIFICATION WTS-120D WTS-160D WTS-200D
Input voltage Range 110V/220V 110V/220V 110V/220V
Input Frequency Range 50/60Hz 50/60Hz 50/61Hz
No Load Power (Watte) ~1W ~2W ~2W
Efficiency(%) : 85~88%
■ OUTPUT SPECIFICATION
Output Voltage (V) 24V 24V 24V
Output Current (A) 2.5A*2EA DUAL 3.5A*2EA DUAL 5A*2EA DUAL
Output Power (Watte) 120W 160W 240W
Ripple & Noise < 5% < 5% < 5%
■ GENERAL SPECIFICATION
Dimension(mm) L200*W150*H80 L200*W150*H80 L200*W150*H80
Input Connector
■ SAFETY KC KC KC
■ OUTPUT JACK OPTION OPTION OPTION
■ APPLICATION / 기능 24VDC 발열체용/ 24hr타이머/1~5단계 온도조절/과열, 단락, 보호기능 장착 /특허등록"다기능온도조절기" 24VDC 발열체용/ 24hr타이머/1~5단계 온도조절/과열, 단락, 보호기능 장착 /특허등록"다기능온도조절기" 24VDC 발열체용/ 24hr타이머/1~5단계 온도조절/과열, 단락, 보호기능 장착 /특허등록"다기능온도조절기"
■ MANUFACTURE WELLTRONICS / Made in KOREA

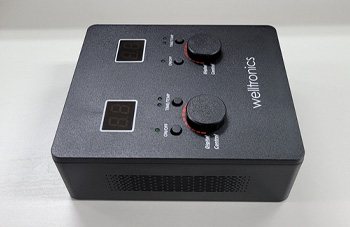

직관형 DIAL 디자인

L200*W150*H80

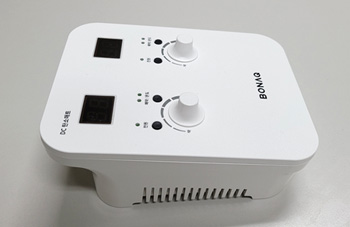

Smart Touch 디자인

L165*W150*H75

기타 조절기

SORT MODEL NAME
■ INPUT SPECIFICATION WTS-100T WTS-50PCH
Input voltage Range ADAPTOR or 시가짹(DC12V/24V) DC5V, 12V 보조배터리팩
Input Frequency Range   50/60Hz
No Load Power (Watte)   ~1W
Efficiency(%) : 85~88%
■ OUTPUT SPECIFICATION
Output Voltage (V) DC12V / 24V DC5V / 12V
Output Current (A) 5A / 3.5A 2A / 3A
Output Power (Watte)
Control 저 중 고 3단 온도조절 저 중 고 3단 온도조절
■ GENERAL SPECIFICATION
Dimension(mm) L71*W29*H19 21.5*21.5(외각 35*35)
Input Connector OPTION OPTION
■ SAFETY ~ ~
■ OUTPUT JACK OPTION OPTION
■ APPLICATION / 기능 다용도/족욕기/쇼파등 의류부착용/방수몰딩
■ MANUFACTURE WELLTRONICS Made in KOREA

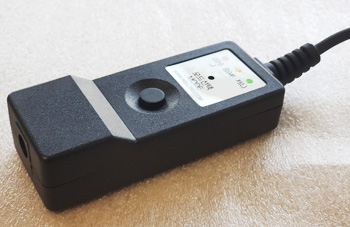

WTS-100T

L200*W150*H80

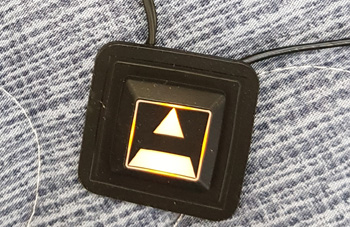

WTS-50PCH

L165*W150*H75
